Description
DP 010F-MF2-31-0E0-2S ratio 31:1 wittenstein Gearbox Planetary gearboxes for Delta robots

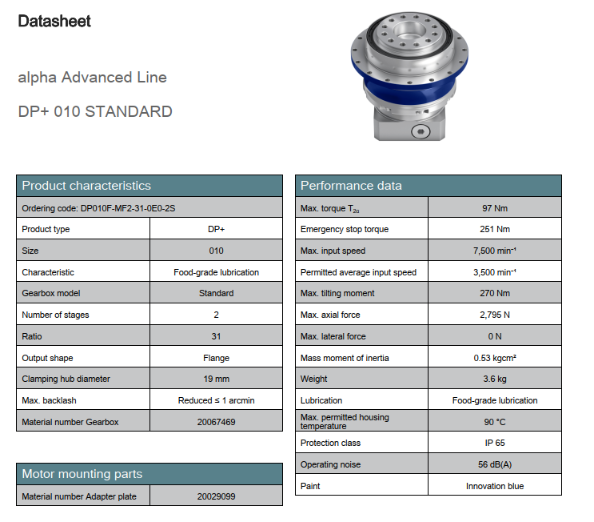

see full specification at last pictures
Performance data
Max. torque T2α
97 Nm
Emergency stop torque
251 Nm
Max. input speed
7,500 min-1
Permitted average input speed
3,500 min-1
Max. tilting moment
270 Nm
Max. axial force
2,795 N
Mass moment of inertia
0.53 kgcm2
Weight
3.6 kg
Lubrication
Food-grade lubrication
Max. permitted housing temperature
90 °C
Protection class
IP 65
Operating noise
≤ 56 dB(A)
Paint
Innovation blue
Product characteristics
Material number Gearbox
20067469
